-49%
Solar Accesories, Solar Panel

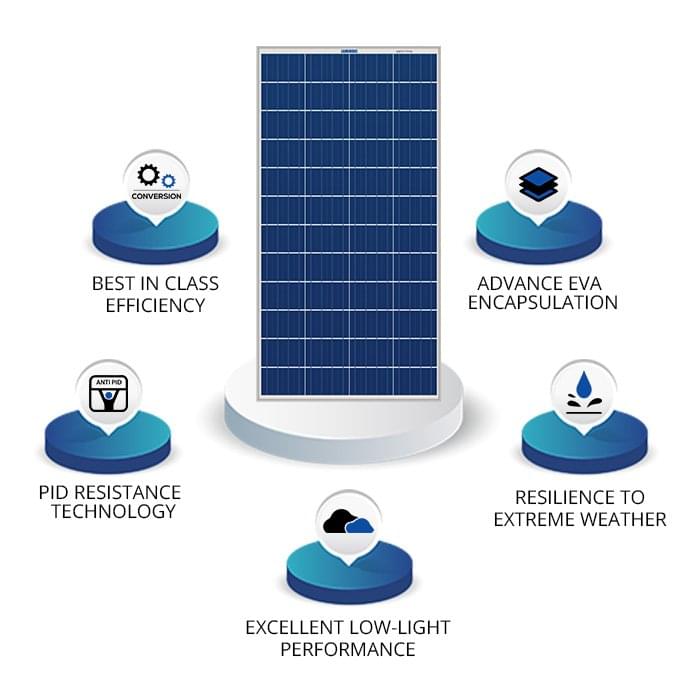

40W/12V Polycrystalline Solar Panel
Availability:
Out of stock
Specification
| Brand Name | Luminous |
|---|---|
| Warranty | 25 Year |
| Model Number | 40W/12V Polycrystalline |
| Type of Product | Solar Panel |
| Series | Polycrystalline |
| Capacity | 40W / 12V |
- Capacity – 40 W, 12V.
- Voltage: Voltage at Max Power (Vmax) – 18V, Open Circuit Voltage (Voc) – 22V.
- Current: Current at Max Power (imax) – 2.23A, Short Circuit Current (isc) – 2.42A.
- 25 years performance warranty.
- Compliance to IEC standards.
- Best in Class conversion efficiency.
- Anti-reflective coating and back surface (BSF) for more light absorption.
- Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
- High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
- PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
- Excellent Low light performance in low visibility in clouds, evening, and morning.
₹1,800.00 ₹3,500.00
Out of stock
Compare-
What’s in the box? : 1N Solar Panel,1N Warranty Card
-
Dimensions (in cms) : 43.5*67*3.4 CM
-
Wattage : 40Wp
-
Application Area : Homes and Small Shops
-
Panel type : PolyCrystalline
-
No. of cells : 36
-
Open circuit voltage voc : 22V
-
Short circuit Current Isc : 2.42A
-
Maximum Power Voltage Vmp : 18V
-
Maximum Power Current Imp : 2.23A
-
Warranty : 60 Months
