Solar Accesories, Solar Panel
80W/12V Polycrystalline Solar Panel
Specification
| Brand Name | Luminous |
|---|---|
| Warranty | 25 Year |
| Model Number | 80W/12V Polycrystalline |
| Type of Product | Solar Panel |
| Series | Polycrystalline |
| Capacity | 80W/12V |
- Capacity – 80 W, 12V
- Voltage: Voltage at Max Power (Vmax) – 18V, Open Circuit Voltage (Voc) – 22V
- Current: Current at Max Power (imax) – 4.4A, Short Circuit Current (isc) – 4.8A
- 25 years performance warranty.
- Compliance to IEC standards.

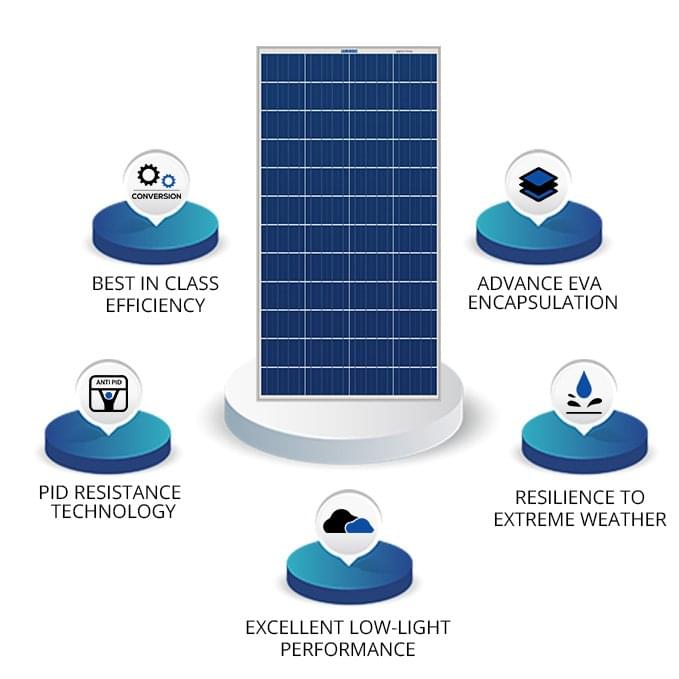

- Best in Class conversion efficiency.
- Anti-reflective coating and back surface (BSF) for more light absorption.
- Advanced EVA (ethyl vinyl acetate) encapsulation to give better protection to modules.
- High strength light-weight aluminum frame design for high torsion resistance against winds and snow loads.
- PID resistance Technology (Potential-Induced Degradation) for safety against substantial power loss due to stray currents triggered by certain climate conditions.
- Excellent Low light performance in low visibility in clouds, evening, and morning.
₹3,100.00 ₹6,700.00
-
What’s in the box? : 1N Solar Panel,1N Warranty Card
-
Dimensions (in cms) : 43.5*67*3.4 CM
-
Wattage : 80Wp
-
Application Area : Homes and Small Shops
-
Panel type : PolyCrystalline
-
No. of cells : 36
-
Open circuit voltage voc : 22V
-
Short circuit Current Isc : 4.82A
-
Maximum Power Voltage Vmp : 18V
-
Maximum Power Current Imp : 4.8A
-
Warranty : 60 Months
